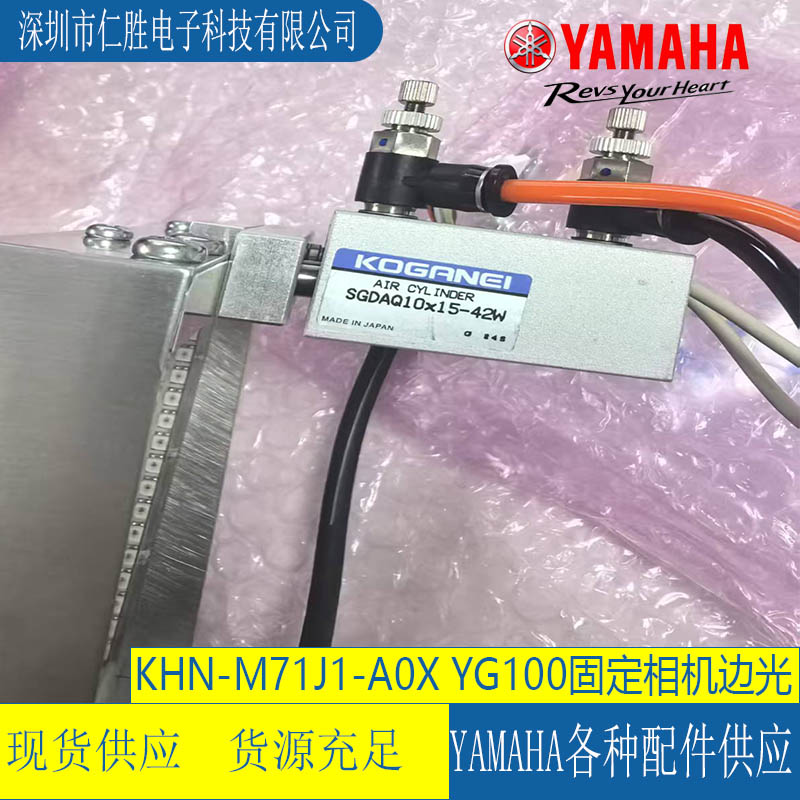

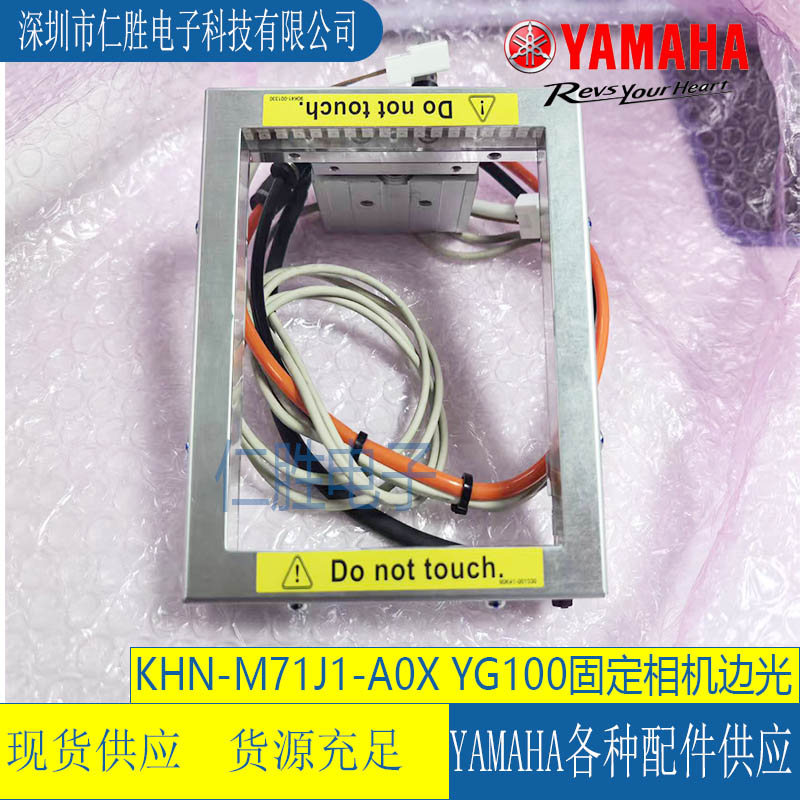

KHN-M71J1-A0X 雅马哈贴片机YG100固定相机边光SGDAQ10*15-42W

YG100固定相机

KGR-M73CS-30X C+L W35-H271-F-SPARE 1 35mm-Front
KGR-M73CS-31X C+L W35-H271-R-SPARE 1 35mm-Rear
KGR-M73CS-40X C+L W50-H271-F-SPARE 1 50mm-Front
KGR-M73CS-41X C+L W50-H271-R-SPARE 1 50mm-Rear
KGR-M750S-00X MULTI LIGHT ASSY 1 Front
KGR-M750S-10X MULTI LIGHT ASSY 1 Rear
KGR-M730S-30X MULTI CAMERA ASSY 1 35mm
KGR-M730S-40X MULTI CAMERA ASSY 1 50mm
4 91317-06020 BOLT HEX. SOCKET HEAD 4
5 92907-06200 WASHER, PLAIN 4
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 KV1-M73A0-64X MULTI CAM.SUB ASSY 1
2 KGR-M7301-00X STAND,CAMERA 1
3 91317-06020 BOLT HEX.SOCKET HEAD 4 M6X20
4 92907-06200 WASHER PLAIN 4 M6
5 KV1-M7303-00X HOLDER,CAMERA 1 1
6 91317-05045 BOLT HEX.SOCKET HEAD 2 M5X45
7 KGA-M66F0-01X C.CABLE ASSY 1
8 KGR-M7511-00X FRAME,SIDE LIGHT 1
9 KGR-M7514-00X DIFFUSER,SIDE LIGHT 1
10 KGR-M7515-00X COVER,SIDE LIGHT 1
11 KGR-M7522-00X CYLINDER ASSY 1
12 KGR-M7524-00X PLATE,SPICON 1
13 KGR-M7528-00X STOPPER 1
14 KGR-M7550-00X M.LIGHT SIDE ASSY 4
15 KGR-M7510-00X HALF MIRROR 1
16 KGR-M7512-00X COVER,GLASS 1
17 KGR-M7513-00X DIFFUSER,COAX 1
18 KGR-M7516-02X COVER,LIGHT UNIT 1
19 KGR-M7517-00X FRAME,BASE 1
20 KGR-M7518-00X FRAME,MAIN LIGHT 1
21 KGR-M7519-00X FRAME,COAX 1
22 KGR-M7520-00X GROMMET 1
23 KGR-M7539-00X STAND,LIGHT 1
24 KGR-M7541-00X COVER,CAMERA 1
25 KGR-M7554-01X M.LIGHT MAIN ASSY 4
26 KGR-M7556-00X M.LIGHT SUB CX.ASSY 1
27 KGR-M7558-01X M.LIGHT COAX.ASSY 1
28 KV1-M6474-02X KV1 LED DRIVER ASSY 1
29 90563-03J050 SPACER BOLT 4 M3X5
30 KGR-M7540-00X ISOLATE WASHER 24
31 90166-04JA04 SCREW,PAN HEAD 32 M2, 5X4
32 90563-0AJ040 SPACER,BOLT 16 M2, 5X4
33 90562-0AJ120 SPACER,BOLT 4 M2, 5X12
34 90K41-000240 SEAL,DON'T TOUCH 2
35 KGR-M6417-00X LABEL,LIGHT 1
36 SSU4 SPEED CONTROLLER 2
37 TL4-M3M JOINT 2
38 98507-04005 SCREW PAN HEAD 13 M4X5
39 98507-03005 SCREW PAN HEAD 8 M3X5
40 91317-03005 BOLT HEX.SOCKET HEAD 2 M3X5
41 91317-04018 BOLT HEX.SOCKET HEAD 2 M4X18
42 91317-04008 BOLT HEX.SOCKET HEAD 2 M4X8
43 91317-04005 BOLT HEX.SOCKET HEAD 8 M4X5
44 91317-03005 BOLT HEX.SOCKET HEAD 8 M3X5
45 KGR-M66N1-00X HNS,LIGHT1 1
46 KGR-M66N2-00X HNS,LIGHT2 1
47 KGR-M66N3-00X HNS,LIGHT3 1
48 KGR-M66N5-00X HNS,LIGHT5 1
49 KGR-M66N6-00X HNS,LIGHT6 1
50 KGR-M66N7-00X HNS,LIGHT7 3
51 KGR-M66N8-00X HNS,LIGHT8 1
52 KGR-M66N9-00X HNS,LIGHT9 1
53 KGR-M66NA-00X HNS,LIGHT10 1
54 KGR-M7534-00X ADHESIVE TAPE
