SENSOR,F1 CUT CL ASSY

No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHY-M3T01-15 BASE PLATE 1,720 1
2 KHY-M3T02-10 BASE PLATE 2,720 1
3 KHY-M3T05-10 CUTTER UPPER L,720 1
4 KHY-M3T05-20 CUTTER UPPER R,720 1
5 KHY-M3T06-13 BASE PLATE 3,720 1
6 KHY-M3T07-B0 CUTTER LOWER,720 1
6-1 KHY-M3T07-B1 CUTTER LOWER,720 1 (2008/7/22) ME70112 OK
7 KHY-M3T08-01 BAR,L 1
8 KHY-M3T08-11 BAR,R 1
9 KHY-M3T09-11 PLATE 4,720 1
10 KHY-M3T0A-01 SIDE BLOCK,L 1
11 KHY-M3T0A-11 SIDE BLOCK.R 1
12 KHY-M3T0B-10 FRONT STAY 4 2
13 KHY-M3T0H-30 CYL. COVER,L 1
14 KHY-M3T0H-40 CYL. COVER,R 1
15 KHY-M3T0M-00 STAY,COVER M 1
16 KHY-M3T0N-00 COVER M 1
17 KHY-M3T0P-00 CYL. COVER 1 1
18 KHY-M3T0U-00 SENSOR STAY 1
19 KHY-M3T0V-00 DOG.,SENSOR 1
20 KHY-M3T10-00 TAPE CUTTER CYL. 1
21 KHY-M3T11-10 CYL. STAY 1 1
22 KHY-M3T12-01 CYL.BLOCK 1
23 KHY-M3T13-10 CYL. COLLAR 1 1
24 KHY-M3T13-20 CYL. COLLAR 2 1
25 KHY-M3T14-00 CYL. COLLAR 2 1
26 KHY-M3T16-00 BACK STAY 2
27 KHY-M3T18-30 COVER L,720 1
28 KHY-M3T18-40 COVER R,720 1
29 KHY-M3T19-00 SIDE COVER 2
30 KHY-M3T22-00 SHOCK ABSORBERS 2
31 KHY-M3T23-00 DAMPER STAY 2
32 KHY-M3T24-00 DAMPER STOPPER 1
33 KHY-M3T26-10 CUTTER COVER,720 1
34 KHY-M3T27-00 FRONT STAY 1 2
35 KHY-M3T28-00 FRONT STAY 2 3
36 KHY-M3T29-00 FRONT STAY 3 1
37 KHY-M3T30-00 CYL. STAY 2 1
38 KHY-M3T31-00 CYL. STAY 3 1
39 KHY-M3T32-00 CYL. STAY 4 1
40 KHY-M3T33-00 BOLT,HEX.S.H. 1
41

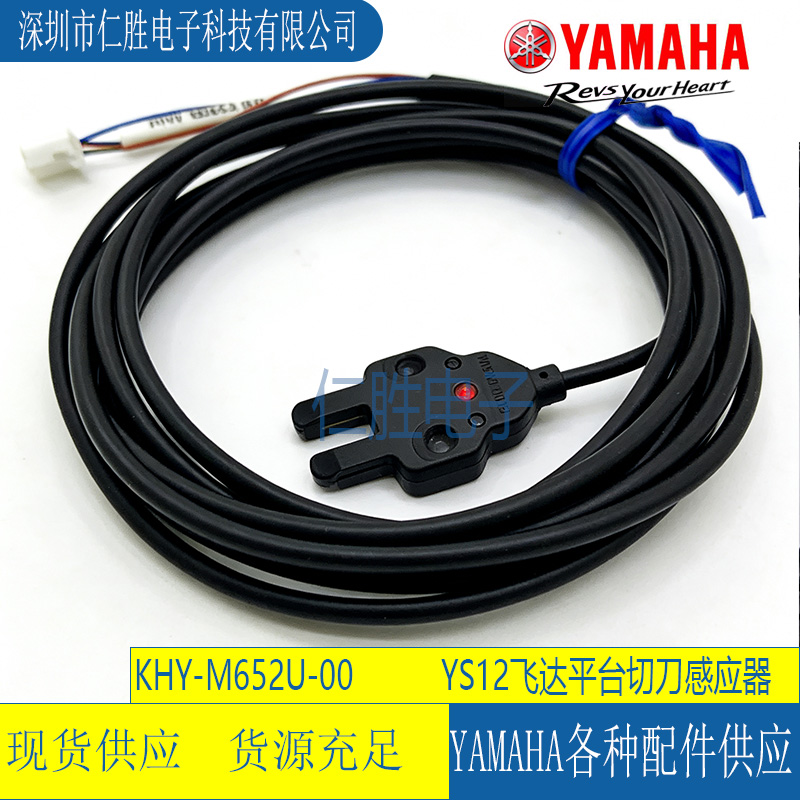

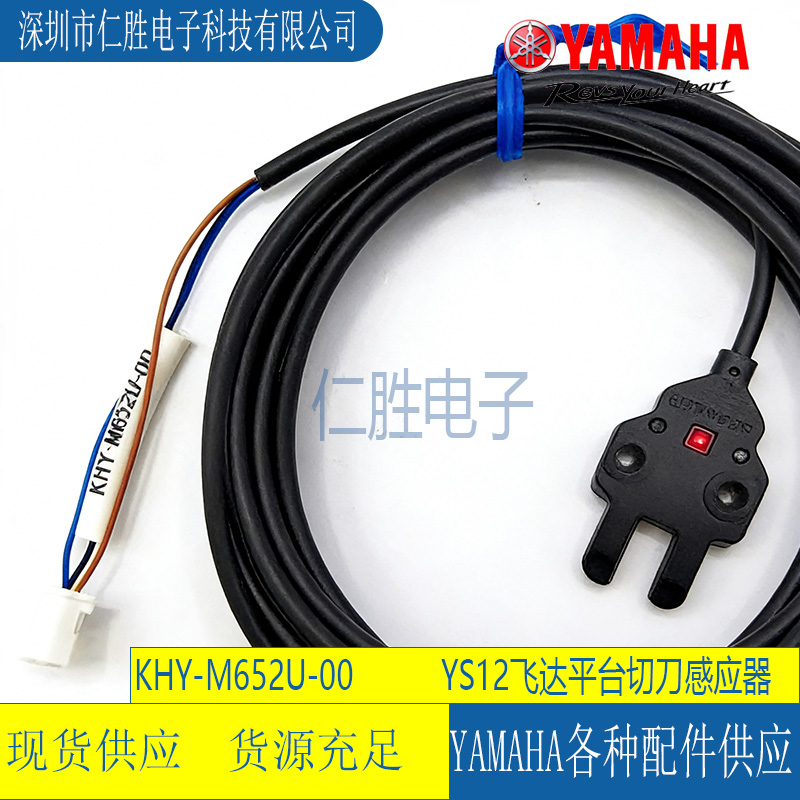

KHY-M652U-00 SENSOR,F1 CUT CL ASSY 1 Front
KHY-M652U-20 SENSOR,R1 CUT CL ASSY 1 Rear
42 90K73-7L0130 LM RAIL 4
43 90K80-025L00 LM BLOCK,HSR25-L 4
44 91312-04006 BOLT HEX.SOCKET HEAD 13 M4X6
45 91312-04008 BOLT HEX.SOCKET HEAD 24 M4X8
46 91312-04010 BOLT HEX.SOCKET HEAD 2 M4X10
47 91312-04016 BOLT,HEX.SOCKET HEAD 2 M4X16
48 91312-04018 BOLT HEX.SOCKET HEAD 12 M4X18
49 91312-05010 BOLT HEX.SOCKET HEAD 6 M5X10
50 91312-05020 BOLT HEX.SOCKET HEAD 8 M5X20
51 91312-06014 BOLT HEX.SOCKET HEAD 22 M6X14
52 91312-06016 BOLT HEX.SOCKET HEAD 8 M6X16
53 91312-06020 BOLT HEX.SOCKET HEAD 6 M6X20
54 91312-06022 BOLT HEX.SOCKET HEAD 10 M6X22
55 91312-06025 BOLT HEX.SOCKET HEAD 6 M6X25
56 91312-06065 BOLT HEX.SOCKET HEAD 4 M6X65
57 91312-08020 BOLT HEX.SOCKET HEAD 1 M8X20
58 92902-04600 WASHER PLAIN 2
59 98702-03006 SCREW FLAT HEAD 4
60 98902-03008 SCREW BINDING HEAD 2
61 98902-04008 SCREW BINDING HEAD 11
62 99480-04010 PIN PARALLEL: 4X10 2
63 91312-05012 BOLT HEX.SOCKET HEAD 3 M5X12
64 91312-06040 BOLT HEX.SOCKET HEAD 4 M6X40
65 91312-06030 BOLT HEX.SOCKET HEAD 6 M6X30
66 91312-04030 BOLT HEX.SOCKET HEAD 3 M4X30
67 $TL4-02 JOINT 2
