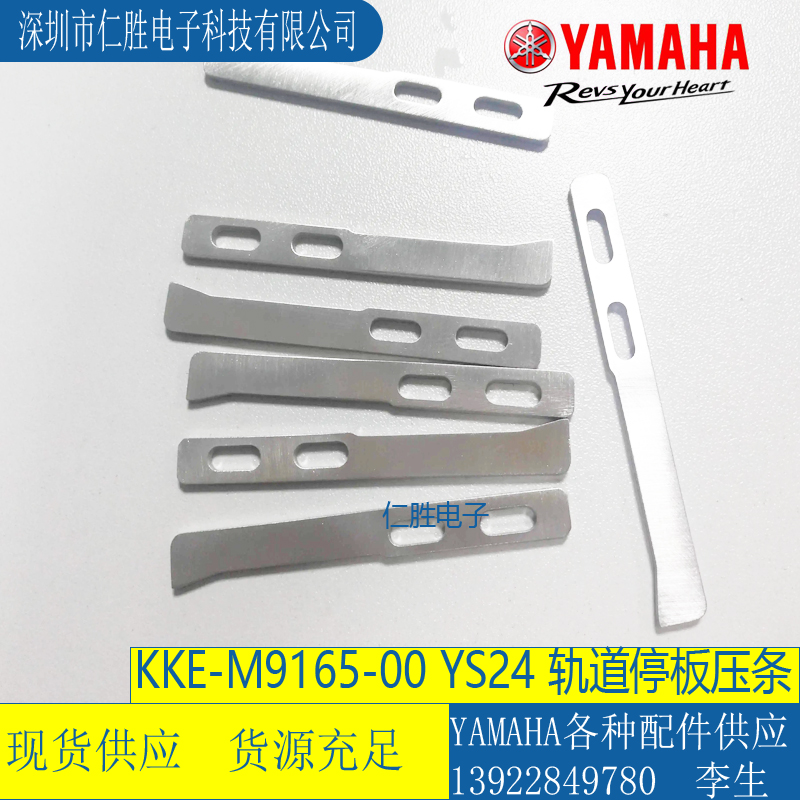

KKE-M9165-00雅马哈贴片机YS24/YSM20轨道主挡板挡片

No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KKE-M9161-00 BRKT.,CYLINDER 1
2 KKE-M9162-00 BRKT.,CYLINDER 2
3 KKE-M9163-00 BRKT.. STOPPER 1
4 KKE-M9164-00 BRKT,STOPPER 2
5 KKE-M9165-00 PLATE, STOPPER 3
6 KKE-M9167-00 PLATE, STOPPER 1
7 KKE-M9168-00 PLATE, STOPPER 2
8 KKE-M9169-00 SHAFT,STOPPER 3
9 KKE-M916B-00 GUIDE 3
10 KKE-M653A-00 CYLINDER, MAIN 1 ASSY.
11 KHW-M916C-00 SPACER 6
12 KHW-M916G-00 COLLAR,JOINT 3
13 KHW-M916H-00 JOINT,CYL. 3
14 90990-08J027 SCREW, PAN HEAD 6
15 SUEF4BU-M3 JOINT 6
16 90112-2AJ006 BOLT HEX. SOCKET HEAD 2
17 90112-2AJ005 BOLT HEX SOCKET HEAD 4
18 91312-03006 BOLT HEX. SOCKET HEAD 6
19 91312-04006 BOLT HEX. SOCKET HEAD 4
20 91312-04006 BOLT HEX. SOCKET HEAD 2
21 91312-04010 BOLT HEX. SOCKET HEAD 5 MAIN1
91312-04010 BOLT HEX. SOCKET HEAD 4 MAIN 2-1,2-2
22 92012-04010 BOLTBUTTON HEAD 4 MAIN 2-1,2-2
92012-04012 BOLTBUTTON HEAD MAIN 1
23 92902-04600 WASHER.PLAIN 6
24 91312-04012 BOLT HEX.SOCKET HEAD 2
25 KKE-M653B-00 CYLINDER. MAIN 2-1 ASSY
26 KKE-M653C-00 CYLINDER,MAIN 2-2 ASSY. 1
27 KKE-M9161-10 BRKT.CYLINDER 1
28 KKE-M9162-10 BRKT.,CYLINDER 2
